Hydrocyclone

The hydrocyclone is mainly composed of a hollow cylinder l and a cone 2 connected. The diameter of the cylinder represents the specifications of the hydrocyclone. Its size varies widely, from 50mm to 1000mm, usually 125-500mm.

24HOURS:+86 17398956111

Get a quote now

  • 0-10 mmFeed size
  • ≤542 m³/hCapacity
  • 1-5 tWeight

Product IntroductionProduct Introduction

AdvantagesAdvantages

Technical ParametersTechnical Parameters

Mainly used for the separation of pulp

The hydrocyclone is a classification device that uses centrifugal force to accelerate the sedimentation of ore particles. It requires pressure feeding, has high classification efficiency, and can obtain very fine overflow products, which are mostly used for classification equipment in the second stage of closed-circuit grinding.

Advantages

Application Field

The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.

Ore Crushing

Ore Crushing

High yield/Efficiency/Low cost
Ore Screening

Ore Screening

Quality First / Precise Grain Size
Ore Grinding

Ore Grinding

Granularity meets requirements
Magnetic Separation

Magnetic Separation

Simple Structure/Easy Operation
Flotation Process

Flotation Process

Low Investment/High Return

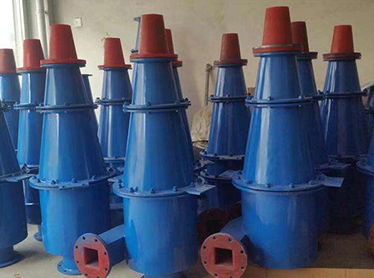

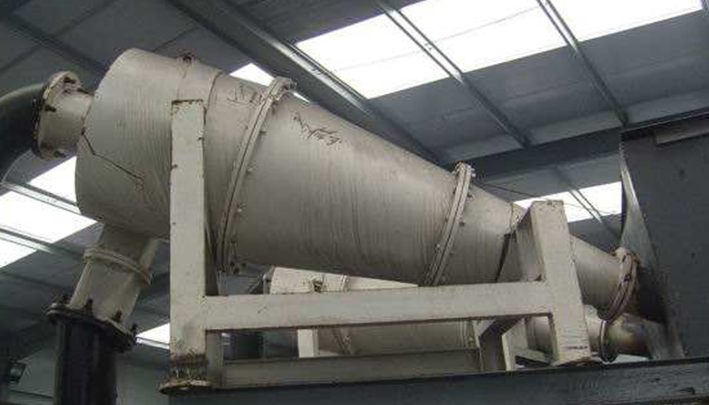

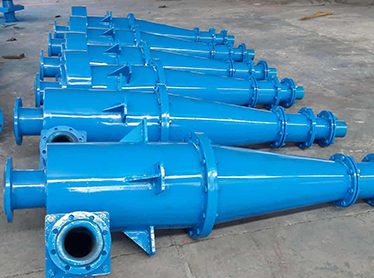

Picture Display

Technical Parameters

ModelSpecificationcapacity (m³/h)Grading particle size (μm)Diameter of overflow port (mm)Sand sink diameter (mm)Inlet pressure (MPa)
XC II F 15015010 ~2325 ~7430 ~508~220.06 ~0.15
XC II F 20020017 ~3828 ~8040 ~6516 ~32
XC II F 25025024 ~5330 ~8265~10016 ~40
XC II F 30030040~10036 ~9065~12020 ~40
XC II F 35035056~11840~10080~12030 ~70
XC II F 37537574~15742~10590~13530 ~70
XC II F 45045090~19244~110100~15030 ~70
XC II F 500500128~30050~115130~22035~100
XC II F 550550155~36852~120140~24035~100
XC II F 600600200~46857~125160~26065~110
XC II F 660660237~52460~130180~28080~150
