Screw Conveyor

A screw conveyor is a machine that uses a motor to drive a screw to rotate and push materials to achieve the purpose of conveying. It can be transported horizontally, obliquely or vertically, and has the advantages of simple structure, small cross-sectional area, good sealing, convenient operation, easy maintenance, and convenient closed transportation.

24HOURS:+86 17398956111

Get a quote now

  • 0-10 mmFeed size
  • 3-139 t/hCapacity
  • 0.5-5 tWeight

Product IntroductionProduct Introduction

AdvantagesAdvantages

Technical ParametersTechnical Parameters

Mainly used to transport minerals

The screw conveyor is composed of a driving device to close the tank box and a screw. The material in the tank box is pushed and output by the screw rotation, so that the material does not rotate with the screw conveyor blades. frictional resistance.

Advantages

Application Field

The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.

Ore Crushing

Ore Crushing

High yield/Efficiency/Low cost
Ore Screening

Ore Screening

Quality First / Precise Grain Size
Ore Grinding

Ore Grinding

Granularity meets requirements
Magnetic Separation

Magnetic Separation

Simple Structure/Easy Operation
Flotation Process

Flotation Process

Low Investment/High Return

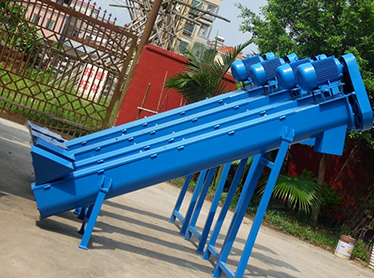

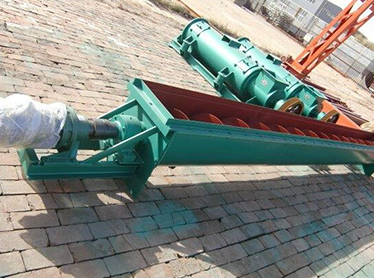

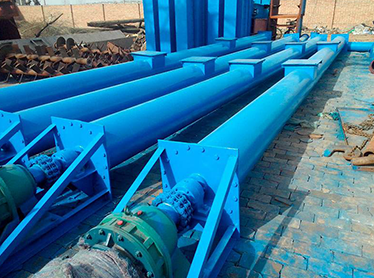

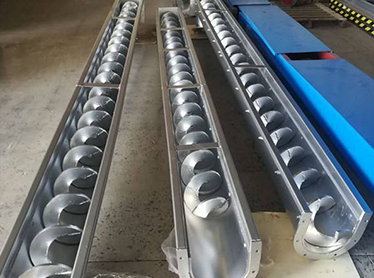

Picture Display

Technical Parameters

Spiral Diameter (mm)Conveying material temperature (℃)Installation inclinationPulverized coalSodaCement
Maximum speed of screw shaft (r/min)Maximum conveying capacity (tons/hour)Maximum speed of screw shaft (r/min)Maximum conveying capacity (tons/hour)Maximum speed of screw shaft (r/min)Maximum conveying capacity (tons/hour)
GX150≤200≤20°1904.51203904.1
GX2001508.51206.7757.9
GX25015016.59010.77515.6
GX30012023.39017.76021.2
GX400120547535.56051
GX500907975706085
GX60090139609745134
