Inflatable Stirring Flotation Machine

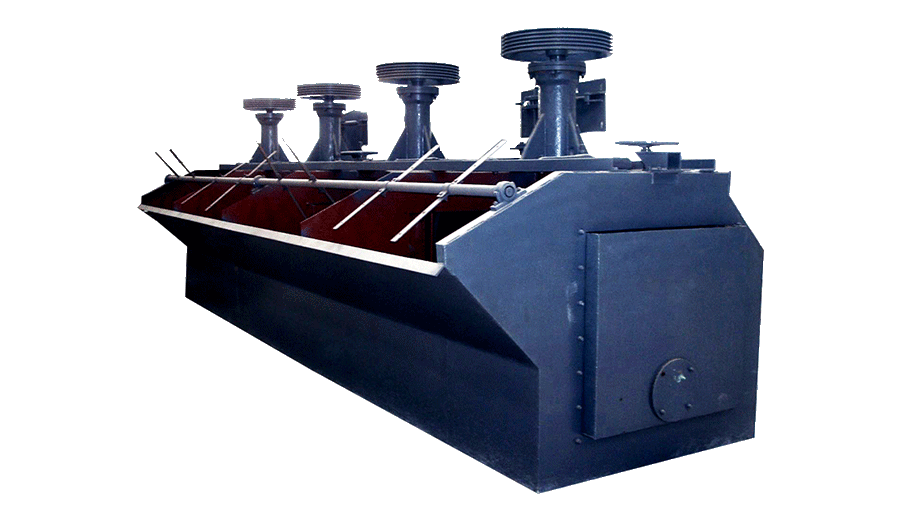

The air-filled stirring flotation machine is composed of a tank body, an impeller, a cover plate, a bell, a circulating cylinder, a main shaft, a central cylinder and a total gas cylinder. It is a unit composed of two tanks, each tank has a volume of 7m3, and the two tanks are connected back to back, so it is called a pneumatic mechanical stirring (double mechanism) flotation machine.

24HOURS:+86 17398956111

Get a quote now

  • 0-30 mmFeed size
  • 0.2~38 m³/minCapacity
  • 0.9-10 tWeight

Product IntroductionProduct Introduction

AdvantagesAdvantages

Technical ParametersTechnical Parameters

Mainly used for the beneficiation of concentrates

The air-filled stirring flotation machine has both a mechanical stirring device and forced air blowing by means of an external special fan. The mechanical stirring device generally only plays the role of stirring the pulp and distributing the air flow. The air is mainly pressed in by the external fan, and the aeration of the pulp is separated from the stirring.

Advantages

Application Field

The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.

Ore Crushing

Ore Crushing

High yield/Efficiency/Low cost
Ore Screening

Ore Screening

Quality First / Precise Grain Size
Ore Grinding

Ore Grinding

Granularity meets requirements
Magnetic Separation

Magnetic Separation

Simple Structure/Easy Operation
Flotation Process

Flotation Process

Low Investment/High Return

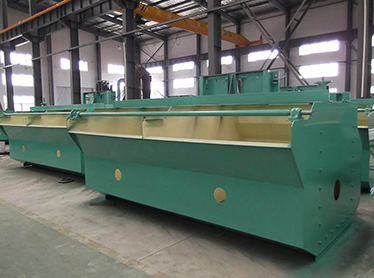

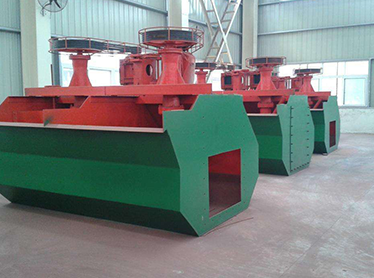

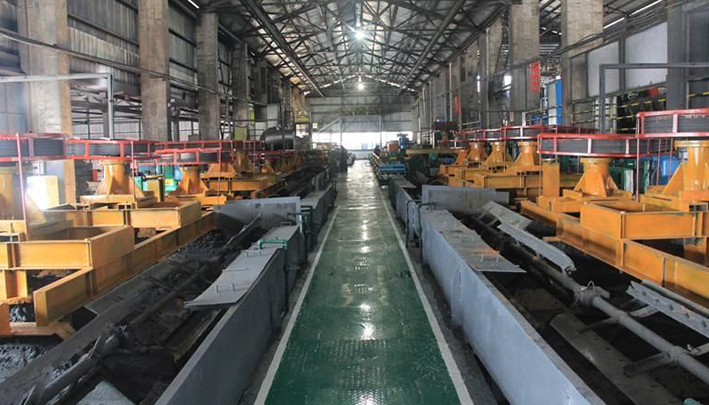

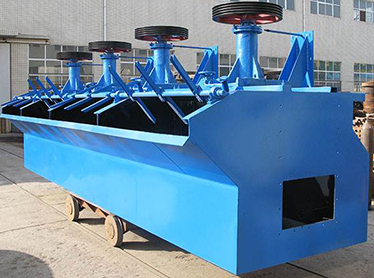

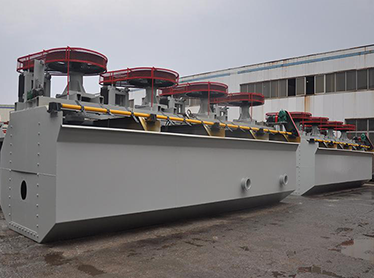

Picture Display

Technical Parameters

ModelEffective volume (m³)Processing power(m3/min)Impeller diameter (mm)Impeller speed (r/min)Blower air pressure(kPa )Max inflation(m³/㎡-min)Stirring motor power(kW)Motor power for scraper(kW)Weight(kg)
KYF-110.2 ~1340281> 12.6240.75903
KYF-220.4 ~2410247> 14.725.51.11419
KYF-330.6 ~3480219> 19.827.51.51885
KYF-441.2 ~4550200> 19.82111.52206
KYF-883.0 ~8630175> 21.62151.53984
KYF-10104.0 ~10630192> 21.62221.54406
KYF-16164.0 ~16740160> 25.52301.55900
KYF-24244.0 ~24800150> 30.42301.57500
KYF-383810.0 ~38880139> 34.32451.510300
