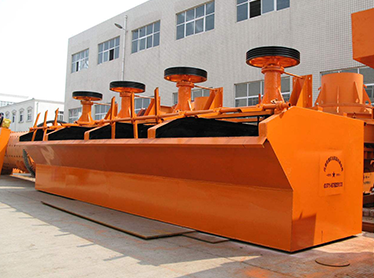

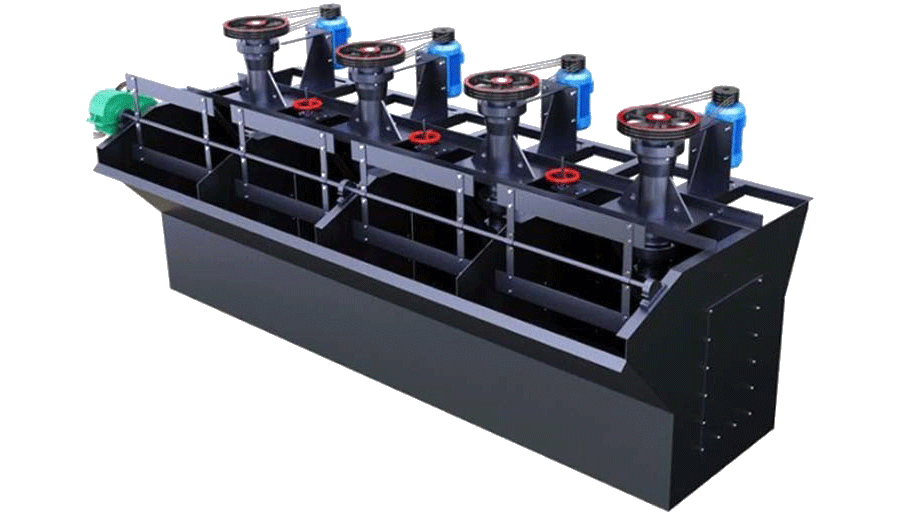

Mechanical Stirring Flotation Machine

Self-priming slurry, self-aspirating mechanical stirring flotation machine can be widely used in the separation of non-ferrous metals, ferrous metals, and non-metallic minerals, suitable for roughing and sweeping operations in large and medium-sized flotation plants.

24HOURS:+86 17398956111

Get a quote now

  • 0-30 mmFeed size
  • 0.24~12 m³/minCapacity
  • 0.5-10 tWeight

Product IntroductionProduct Introduction

AdvantagesAdvantages

Technical ParametersTechnical Parameters

Mainly used for the beneficiation of concentrates

The mechanical stirring flotation machine uses the impeller-stator system as a mechanical agitator, and the flotation machines that realize aeration and stirring are collectively referred to as mechanical stirring flotation machines. There are two types of stirring and compressed air.

Advantages

Application Field

The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.

Ore Crushing

Ore Crushing

High yield/Efficiency/Low cost
Ore Screening

Ore Screening

Quality First / Precise Grain Size
Ore Grinding

Ore Grinding

Granularity meets requirements
Magnetic Separation

Magnetic Separation

Simple Structure/Easy Operation
Flotation Process

Flotation Process

Low Investment/High Return

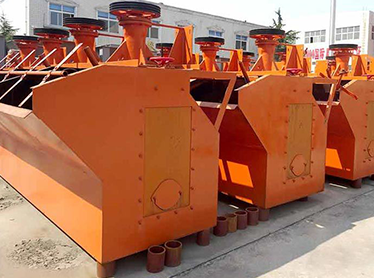

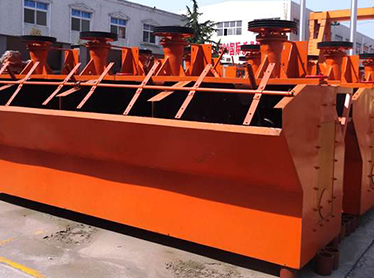

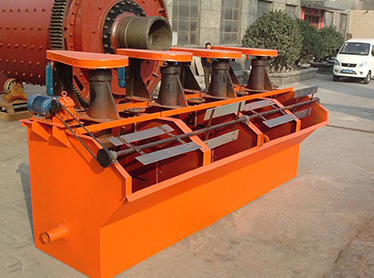

Picture Display

Technical Parameters

ModelEffective volume (m³)Processing power(m3/min)Impeller diameter (mm)Impeller speed (r/min)Stirring motor power (kW)Motor power for scraper (kW)Single slot weight (kg)
SF-0.370.370.2~0.4300352~4421.50.55468
SF-0.70.70.3~1.0350336~38431.1629
SF-1.21.20.6~1.64503125.51.11373
SF-221.5 ~3550280111.51879
SF-2.82.81.5~3.5550280111.51902
SF-442.0 ~4650235151.52582
SF-663~6760191302.23540
SF-884.0 ~8760191302.24129
SF-16165.0 ~16850169~193451.57415
SF-202010 ~12850169~193451.59828
