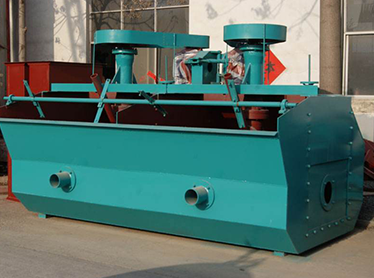

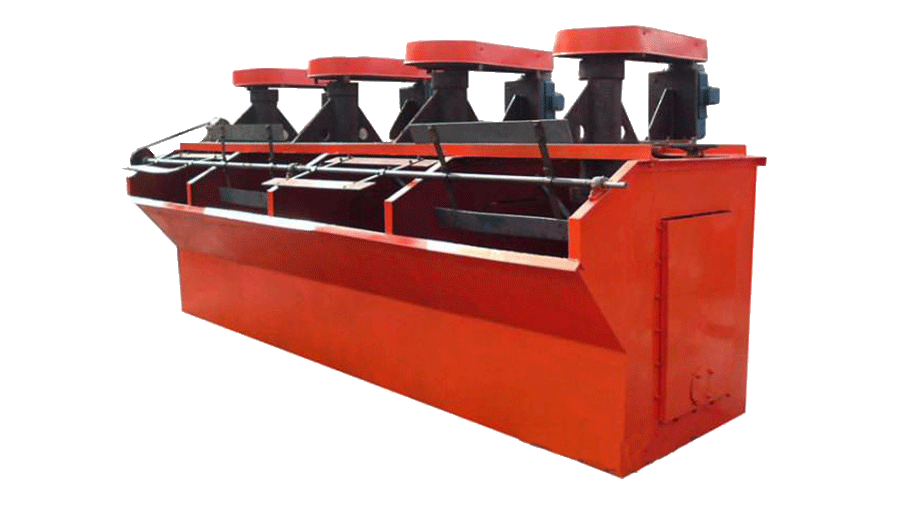

Rod Flotation Machine

The characteristics of the rod flotation machine are the use of rod wheel stirring, shallow groove flotation, and pump wheel suction; large air volume, strong stirring force, high bubble dispersion, and the slurry flow trajectory is "W" shape, good adaptability, suitable for It is suitable for flotation with large specific gravity, coarse particle size and high concentration.

24HOURS:+86 17398956111

Get a quote now

  • 0-30 mmFeed size
  • 1.5~4 m³/minCapacity
  • 5-16 tWeight

Product IntroductionProduct Introduction

AdvantagesAdvantages

Technical ParametersTechnical Parameters

Mainly used for the beneficiation of concentrates

The bar flotation machine is a shallow slot flotation machine, and the main components in the slot are a bar wheel, a boss and a current stabilizer, and its structure is very simple. It is through the rotation of the rod wheel, inhaling air through the hollow vertical shaft to create a "slurry-air mixture".

Advantages

Application Field

The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.

Ore Crushing

Ore Crushing

High yield/Efficiency/Low cost
Ore Screening

Ore Screening

Quality First / Precise Grain Size
Ore Grinding

Ore Grinding

Granularity meets requirements
Magnetic Separation

Magnetic Separation

Simple Structure/Easy Operation
Flotation Process

Flotation Process

Low Investment/High Return

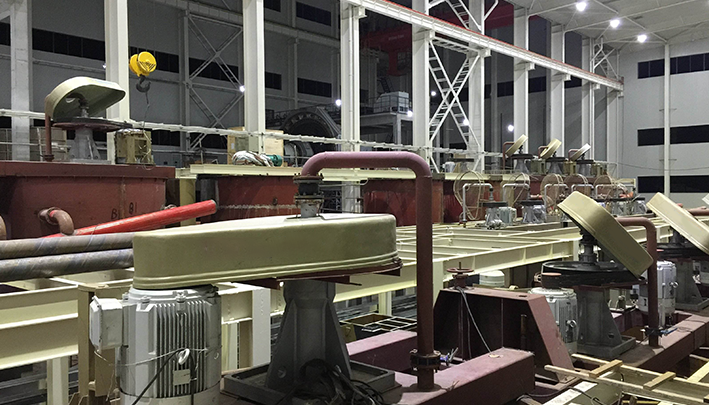

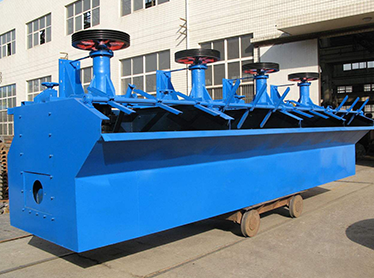

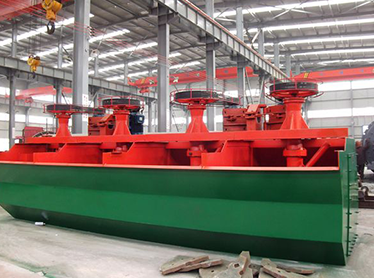

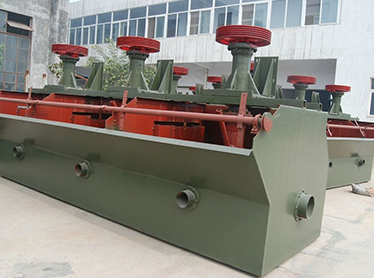

Picture Display

Technical Parameters

ModelSlot typeEffective volume(m3)processing power(m3/min)Impeller diameter (mm)Impeller speed (r.p.m)Stirring motor power (kw)Motor power for scraper (kw)4 slots weight (kg)
XJB-1Suction slot11.5-1.74004405.51.55344
XJB-1DC slot11.5-1.741041040.85344
XJB-1DSuction slot11.5-1.74004405.51.55479
XJB-1DDC slot11.5-1.741041040.85479
XJB-2Suction slot21.5-1.4450360151.19071
XJB-2DC slot21.5-1.4540360111.19071
XJB-2DSuction slot21.5-1.4450360151.19320
XJB-2DDC slot21.5-1.4540360111.19320
XJB-4Suction slot42.0-470028018.51.116325
XJB-4DC slot42.0-451028018.51.116325
