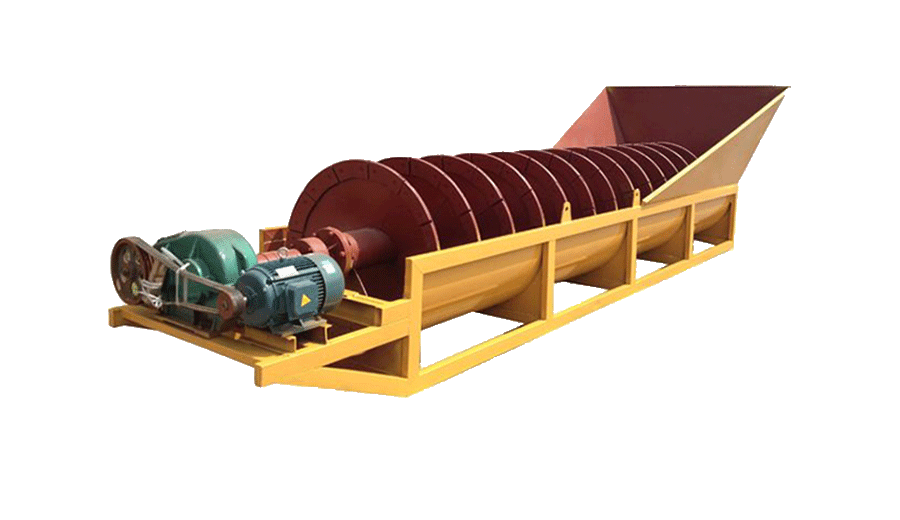

Submerged Spiral Classifier

The base of the submerged spiral classifier is made of channel steel, and the body is welded with steel plates. The water inlet head and shaft head of the screw shaft are made of pig iron sleeves, which are wear-resistant and durable. The lifting device is divided into two types: electric and manual.

24HOURS:+86 17398956111

Get a quote now

  • 0-30 mmFeed size
  • 50~1410 t/dCapacity
  • 5-85 tWeight

Product IntroductionProduct Introduction

AdvantagesAdvantages

Technical ParametersTechnical Parameters

Mainly used for ore cleaning and classification

The submerged spiral classifier is based on the principle that the size of the solid particles and the specific gravity are different, so the sedimentation speed in the liquid is different. The coarse material is spun into the feed port of the mill by means of the spiral vane, and the filtered fine material is discharged from the overflow pipe.

Advantages

Application Field

The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.

Ore Crushing

Ore Crushing

High yield/Efficiency/Low cost
Ore Screening

Ore Screening

Quality First / Precise Grain Size
Ore Grinding

Ore Grinding

Granularity meets requirements
Magnetic Separation

Magnetic Separation

Simple Structure/Easy Operation
Flotation Process

Flotation Process

Low Investment/High Return

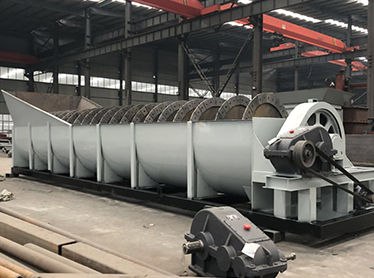

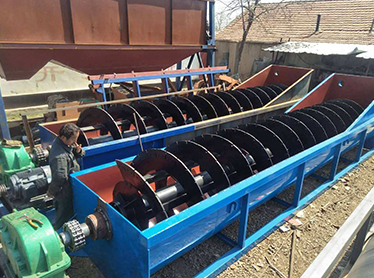

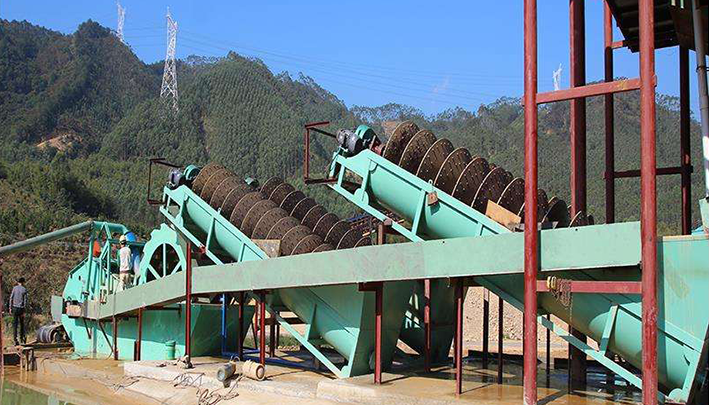

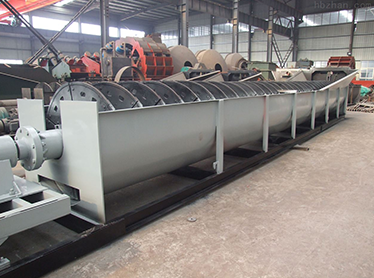

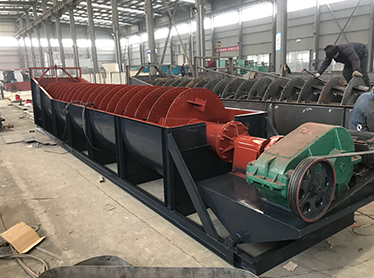

Picture Display

Technical Parameters

TypeModelScrew speed (r.p.m)According to the sand return processing capacity (t/d)By overflow capacity (t/d)Spiral diameter (mm)Sink length (mm)Sink SlopeTransmission motor modelTransmission motor power (kw)Lift motor modelLifting motor power (kw)Weight (kg)
Submerged Single Spiral ClassifierFLC-10002.5,3.5,5,7.4160-70050~2601000839714-18Y132M2-65.5Manual5225
FLC-12005,6,71150-16402651200840014-18Y160M-67.5Y90L-41.59583
FLC-15002.5,4,61140-274018515001050014-18Y160L-67.5Y100L1-42.214226
FLC-20003.6,5.53240-594040020001300014-18Y160M-611Y100L2-4327753
Y160L-415
FLC-24003.6680049024001413014-18Y200L1-618.5Y112M-4432467
FLC-30003.21165070530001430014-18Y200L-430Y112M-4443500
Submerged Double Spiral Classifier2FLC-12003.8,61770-28002401200840014-18Y160M-67.5×2Y100L1-42.2×219610
2FLC-15002.5,4,62240-536037015001050014-18Y160M-67.5×2Y100L1-42.2×227450
2FLC-20003.6,5.57780-1188064020001290014-18Y160L-6/42×11,2×15Y100L2-43.0×250621
Y200L2-622
Y200L-430
2FLC-24003.671370091024001413014-18Y225S-437Y112M-44.0×265283
2FLC-30003.223300141030001430014-18Y225M-445Y112M-44.0×284900
