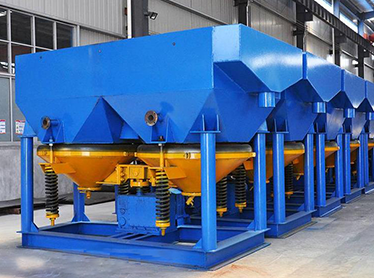

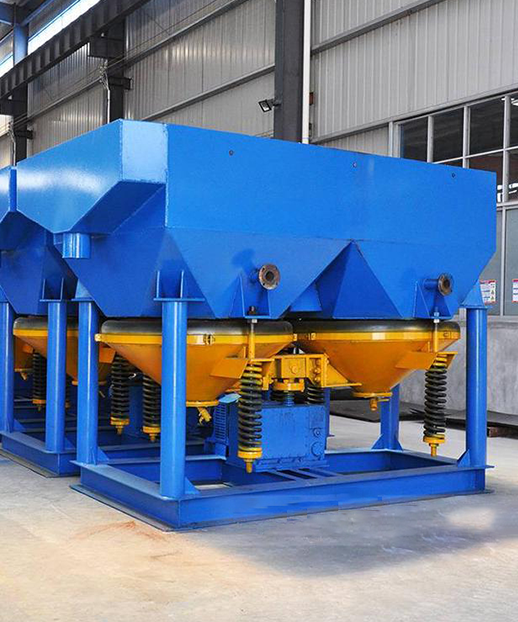

Jig Machine

The jig is equipped with a fixed screen and is specially designed to separate fine and coarse mineral materials. The maximum feed size is 6-8mm. In special cases, the maximum feed size can be up to 12mm for emery machine separation. The use of conical spool valve reduces the failure rate by 80%. Low energy consumption, can meet the separation requirements of different materials, and the processing capacity is increased by 35%.

24HOURS:+86 17398956111

Get a quote now

  • 6-25 mmFeed size
  • 1~25 t/dCapacity
  • 0.6-4.5 tWeight

Product IntroductionProduct Introduction

AdvantagesAdvantages

Technical ParametersTechnical Parameters

Mainly used for the beneficiation of concentrates

Advantages

Application Field

The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.

Ore Crushing

Ore Crushing

High yield/Efficiency/Low cost
Ore Screening

Ore Screening

Quality First / Precise Grain Size
Ore Grinding

Ore Grinding

Granularity meets requirements
Magnetic Separation

Magnetic Separation

Simple Structure/Easy Operation
Flotation Process

Flotation Process

Low Investment/High Return

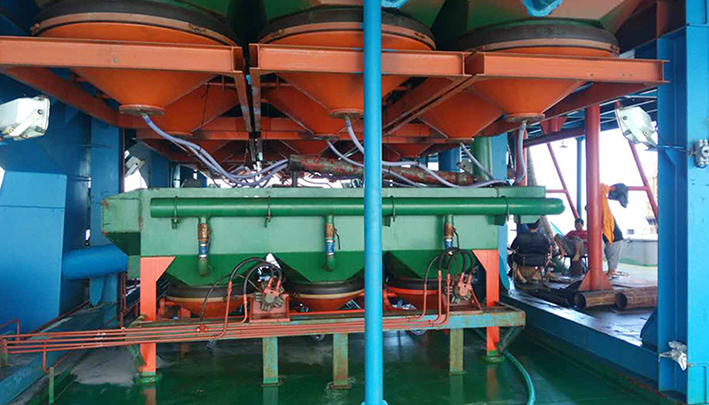

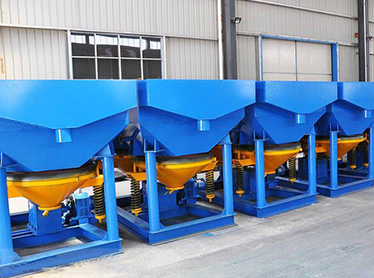

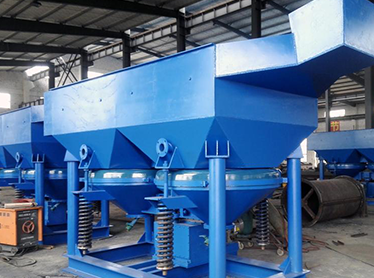

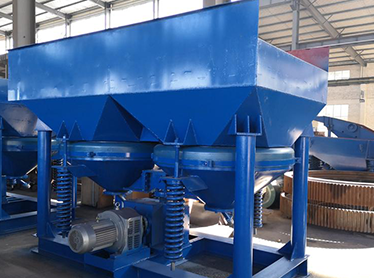

Picture Display

Technical Parameters

ModelJigging roomDiaphragmFeeding particle size (mm)Make-up water volume under sieve (m³/t)Make-up water pressure (MPa)Capacity (t/h)Motor power (kW)Dimensions (mm)Weight (kg)
ShapeArea(㎡)Stroke(mm)Stroke times (n/min)
JT-0.57Trapezoid0.578.5~1280~180<61~2> 0.051.5~31.51550X780X1530610
JT1-1Trapezoid1.0410~17<102~32.5~52.22270X1110X1890900
JT2-2Rectangle2.2812~21<102~45~1033225X1550X20501640
JT3-1Trapezoid312~3050~125<103~6> 0.057.5~155.52745X2000X30303085
JT4-2(1)Rectangle425~57<254~88~207.54240X1990X27503098
JT4-2ARectangle425~57<254~88~204X24240X1990X27503500
JT5-2Trapezoid4.8612~30<103~612~257.53600X2000X26004500
