Spiral Chute

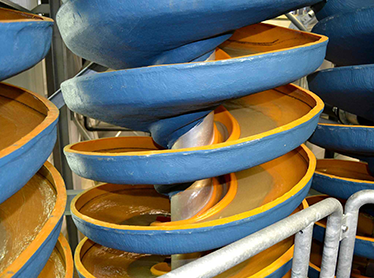

Spiral chute is composed of ore feeding homogenizer, cross (tripod), ore feeding trough, spiral trough, intercepting trough, gathering bucket and trough support. This equipment has the characteristics of stable separation process, easy control, wide variation range of ore concentration, high enrichment ratio and high recovery rate.

24HOURS:+86 17398956111

Get a quote now

  • 180-360 mmFeed size
  • 0.2-10 t/dCapacity
  • 0.05-0.9 tWeight

Product IntroductionProduct Introduction

AdvantagesAdvantages

Technical ParametersTechnical Parameters

Mainly used for the beneficiation of concentrates

This equipment is suitable for sorting iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphoethyl ore, tungsten ore, tin ore, tantalum with a particle size of 0.3--0.02 mm. ores, niobium ores and other non-ferrous, rare and non-metallic minerals with differences in specific gravity.

Advantages

Application Field

The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.

Ore Crushing

Ore Crushing

High yield/Efficiency/Low cost
Ore Screening

Ore Screening

Quality First / Precise Grain Size
Ore Grinding

Ore Grinding

Granularity meets requirements
Magnetic Separation

Magnetic Separation

Simple Structure/Easy Operation
Flotation Process

Flotation Process

Low Investment/High Return

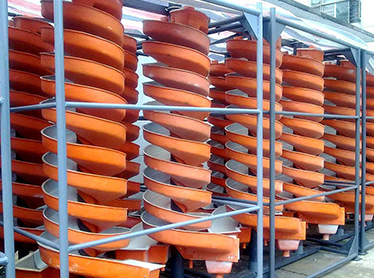

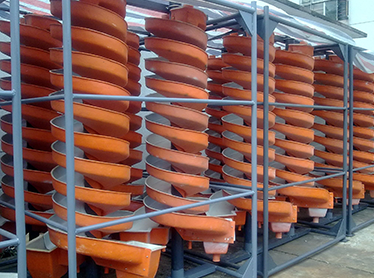

Picture Display

Technical Parameters

ModelOuter diameter (mm)Pitch (mm)Head countFeeding particle size (mm)Capacity (t/h)Dimensions (mm)Weight (kg)
BLL-15001500900,6752-40.8-0.0376-101600×1600×45101100
BLL-12001200900,720,5402-40.3-0.0374-61360×1360×5230800
BLL-900900675,540,4052-40.3-0.0372-31060×1060×4000400
BLL-600600450,360,2702-30.2-0.0370.8-1.2700×700×2600150
BLL-400400204,181-20.2-0.0370.15-0.2460×460×150050

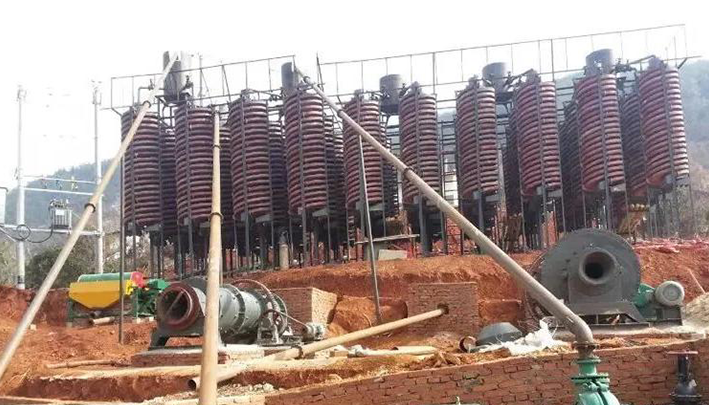

View More>>Related Cases
