Strong Magnetic Separator

The strong magnetic separator is a strong magnetic separation equipment used to separate weak magnetic minerals. The super magnetic separator is mainly composed of excitation power control box, excitation coil, magnetic yoke, pole head, induction roller, vibrating feeder, ore receiving tank and other components.

24HOURS:+86 17398956111

Get a quote now

  • 0-10 mmFeed size
  • 24-240 t/hCapacity
  • 5-9 tWeight

Product IntroductionProduct Introduction

AdvantagesAdvantages

Technical ParametersTechnical Parameters

Mainly used for the beneficiation of concentrates

The super magnetic separator is suitable for wet magnetic separation of hematite, limonite, manganese ore, ilmenite and other materials with a particle size of less than 3mm, and is also used for iron removal of coal, non-metallic ores, building materials and other materials.

Advantages

Application Field

The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.

Ore Crushing

Ore Crushing

High yield/Efficiency/Low cost
Ore Screening

Ore Screening

Quality First / Precise Grain Size
Ore Grinding

Ore Grinding

Granularity meets requirements
Magnetic Separation

Magnetic Separation

Simple Structure/Easy Operation
Flotation Process

Flotation Process

Low Investment/High Return

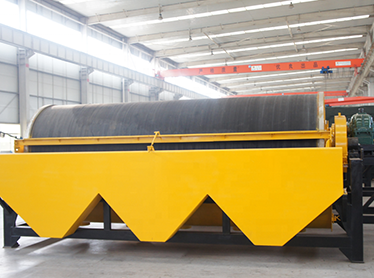

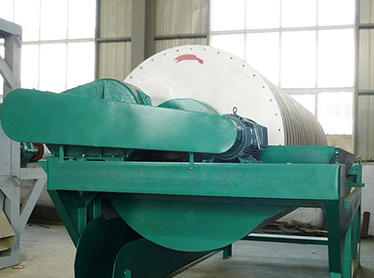

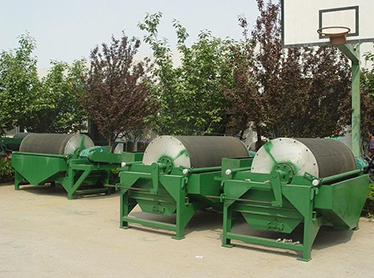

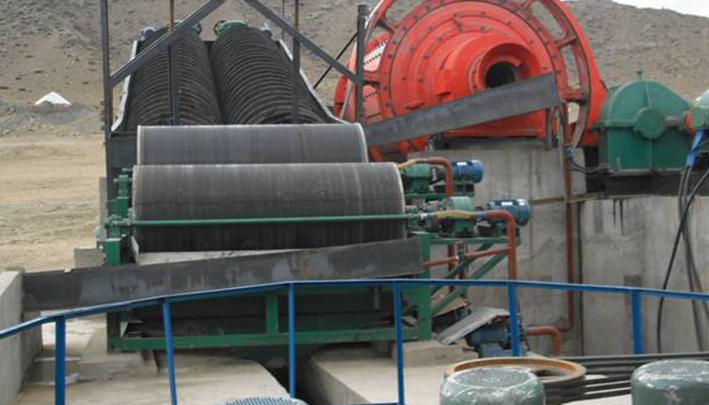

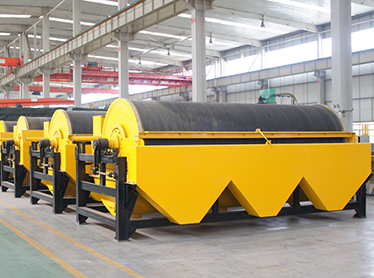

Picture Display

Technical Parameters

ModelCylinder diameter*Cylinder length (mm)Magnetic field strength on the surface of the cylinder (GS)Speed (r/min)CapacityPower (kw)Weight (kg)Dimensions (mm)
Dry OreSlurry volume (m3/h)
T/h
QCT(B/S/N)4040400*4002000-13500451-231.51501000*900*800
QCT(B/S/N)4050400*5002000-13500451-351.52201100*1000*900
QCT(B/S/N)4060400*6002000-13500455-1061.54501200*1000*900
QCT(B/S/N)6066600*6002000-13500408-15162.24801200*1100*1050
QCT(B/S/N)6069600*9002000-135004010-202435501500*1100*1050
QCT(B/S/N)6012600*12002000-135004015-303236001800*1100*1050
QCT(B/S/N)6018600*18002000-135004015-304838602100*1200*1170
QCT(B/S/N)7512750*12002000-135003515-3048310502150*1450*1350
QCT(B/S/N)7518750*18002000-135003520-4572312502750*1450*1350
QCT(B/S/N)9018900*18002000-135002825-5590416102750*1670*1470
QCT(B/S/N)9024900*24002000-135002835-70110418103350*1670*1470
QCT(B/S/N)10181050*18002000-135002240-751205.515003100*1810*1650
QCT(B/S/N)10211050*21002000-135002245-881405.518103400*1810*1650
QCT(B/S/N)10241050*24002000-135002252-1001605.521503700*1810*1650
QCT(B/S/N)10301050*30002000-135002265-1501807.529004100*1950*1850
QCT(B/S/N)12181200*18002000-135001947-902007.520203650*2000*2000
QCT(B/S/N)12241200*24002000-135001952-1202207.527003950*2100*2000
QCT(B/S/N)12301200*30002000-135001980-1502401133504200*2100*2000
QCT(B/S/N)15301500*30002000-135001590-1702801546404750*2200*2050
QCT(B/S/N)15361500*36002000-1350015120-1403001544404750*2200*2050
QCT(B/S/N)15401500*40002000-1350015130-2203501548005150*2200*2050
