Wet Magnetic Separator

The wet permanent magnet drum magnetic separator is divided into three types according to the tank structure: forward flow, counter flow and semi-counter flow. According to the operating conditions, it is divided into wet type and dry type; according to the magnetic source, it is divided into electromagnetic type and permanent magnet type; according to the equipment structure, it is divided into disc type, roller type, flat ring type, vertical ring type, induction roller type, etc.

24HOURS:+86 17398956111

Get a quote now

  • 0-10 mmFeed size
  • 24-240 t/hCapacity
  • 5-9 tWeight

Product IntroductionProduct Introduction

AdvantagesAdvantages

Technical ParametersTechnical Parameters

Mainly used for the beneficiation of concentrates

Wet magnetic separator is a commonly used iron ore equipment (iron ore magnetic separator) and manganese ore equipment (manganese ore magnetic separator), and it is the mainstream high-strength magnetic separator ore dressing equipment.

Advantages

Application Field

The products and production lines designed by our experienced engineers are widely used in various ore flotation, magnetic separation and other beneficiation industries.

Ore Crushing

Ore Crushing

High yield/Efficiency/Low cost
Ore Screening

Ore Screening

Quality First / Precise Grain Size
Ore Grinding

Ore Grinding

Granularity meets requirements
Magnetic Separation

Magnetic Separation

Simple Structure/Easy Operation
Flotation Process

Flotation Process

Low Investment/High Return

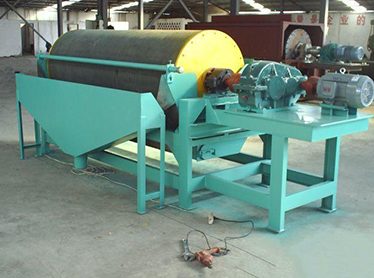

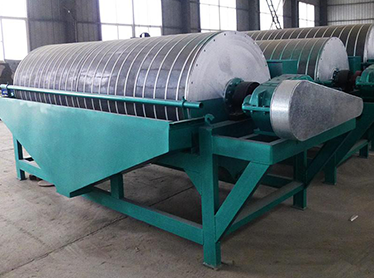

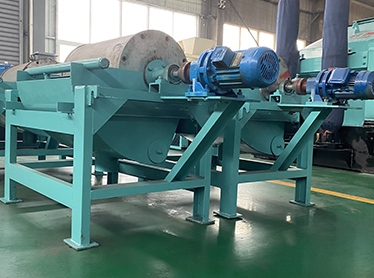

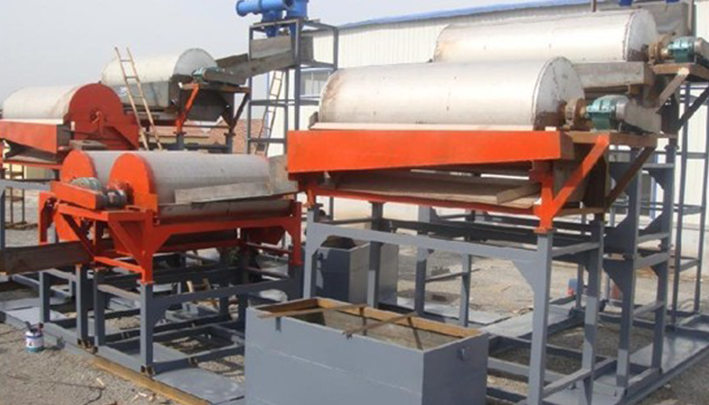

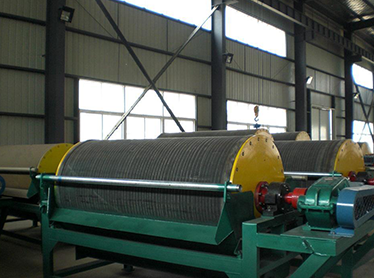

Picture Display

Technical Parameters

SpecificationsCTBy1018CTBy1024CTBy1030CTBY1218CTBY1224CTBY1230
Cylinder diameter (mm)100010001000120012001200
Cylinder length (mm)180024003000180024003000
Field strength on the tube surface (mT)350550350550350550350550350550350550
Cylinder speed (r/min)232323202020
Dry ore processing capacity (t/h)4265538682124589771120103158
Feeding particle size (mm)010010010010010010
Pulp concentration (%)205020502050205020502050
Motor power (KW)5.57.57.57.51111
Total weight (t)5.26.47.16.77.28.9
Equipment length (mm)316037904460338041904770
Equipment width (mm)225022502250246024602460
Equipment height (mm)175017501750200020002000
